The chemical storage and transportation industry, along with the environmental water treatment sector, impose stringent demands on containers in terms of **corrosion resistance, sealing integrity, service life, and overall cost**. While traditional steel containers offer high strength, corrosion remains a persistent pain point across these industries.

Against this backdrop, rotational molding technology has gradually become the preferred manufacturing process for large-scale hollow products such as chemical storage tanks and environmental water treatment containers, thanks to its **unique advantages — seamless construction, corrosion resistance, high design flexibility, and short production cycles**. In this episode, we take an accessible, industry-focused perspective to help you fully understand the **core technical capabilities, representative applications, and market trends** of rotomolding in the chemical and environmental water treatment fields.

Part 1: Why Are the Chemical and Environmental Sectors Increasingly Choosing Rotomolding?

The three priorities for chemical liquid storage and wastewater treatment are: **corrosion resistance with zero leakage, long service life, and low overall cost**.

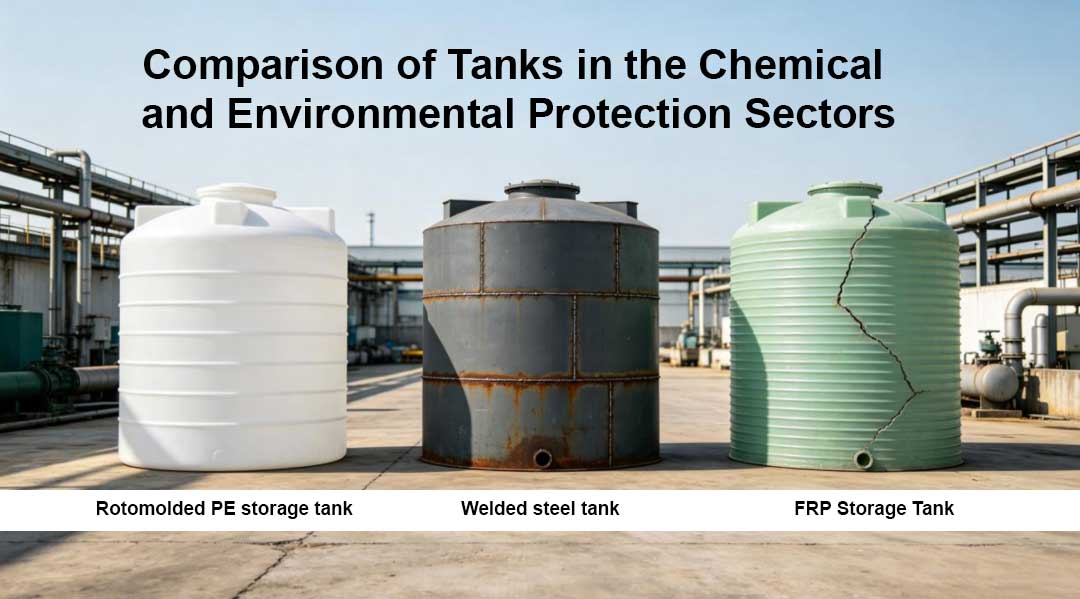

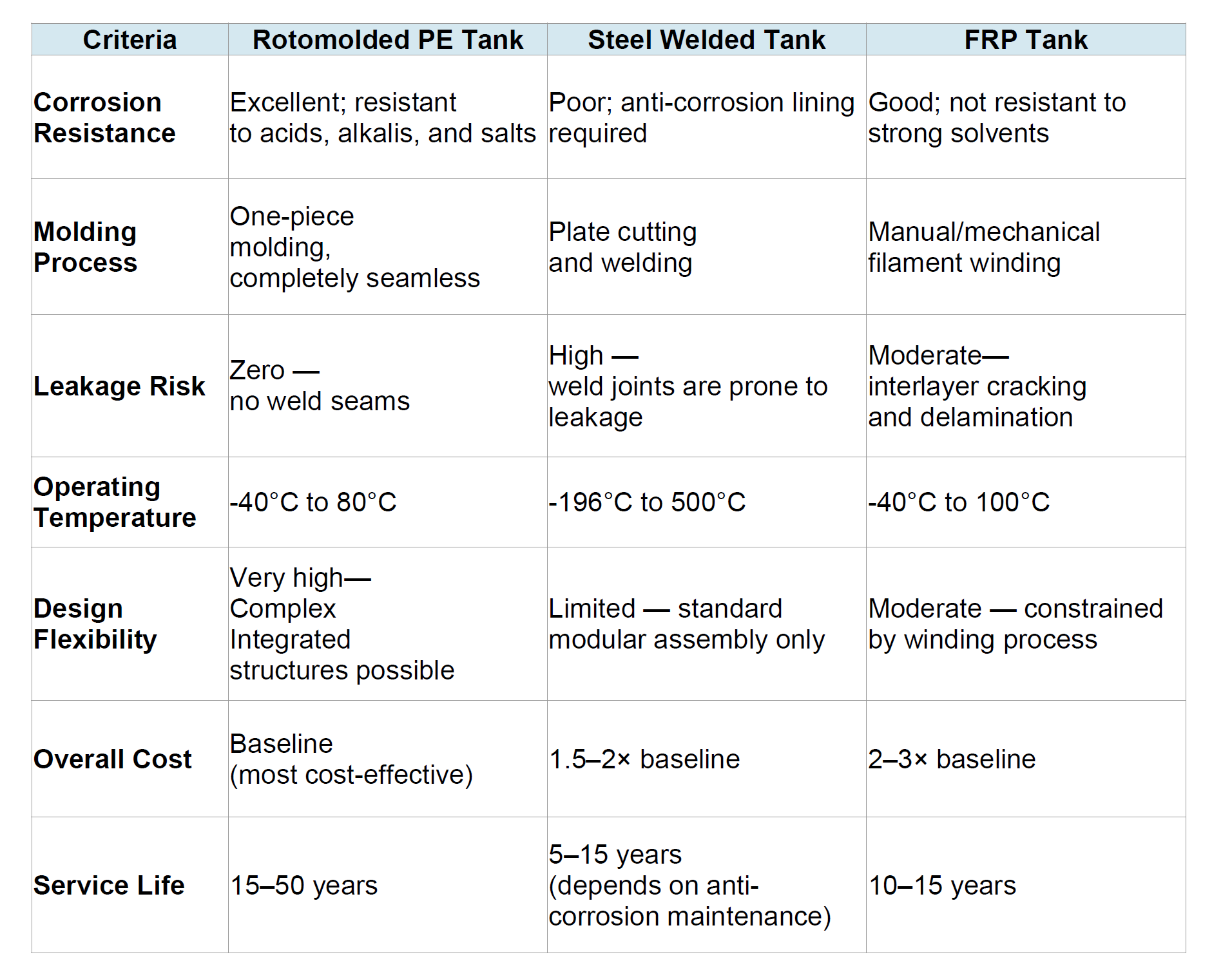

The following comparison of three mainstream tank types clearly illustrates rotomolding’s competitive edge:

In short, for standard acid/alkali storage and wastewater treatment applications, rotomolded tanks lead traditional steel and FRP tanks across the board in safety, durability, and economics.

Part 2: Full-Spectrum Applications of Rotomolding in the Chemical Industry

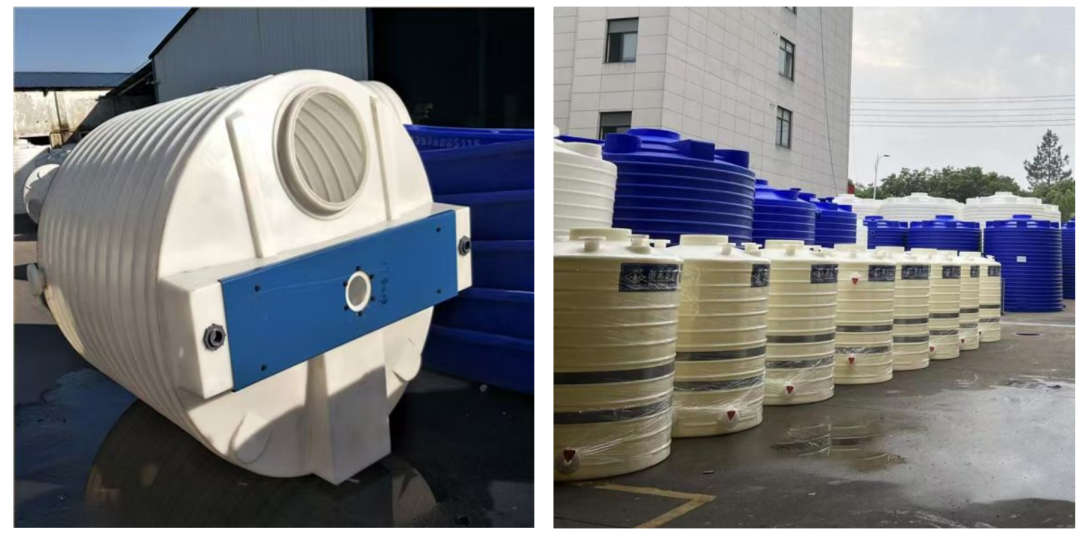

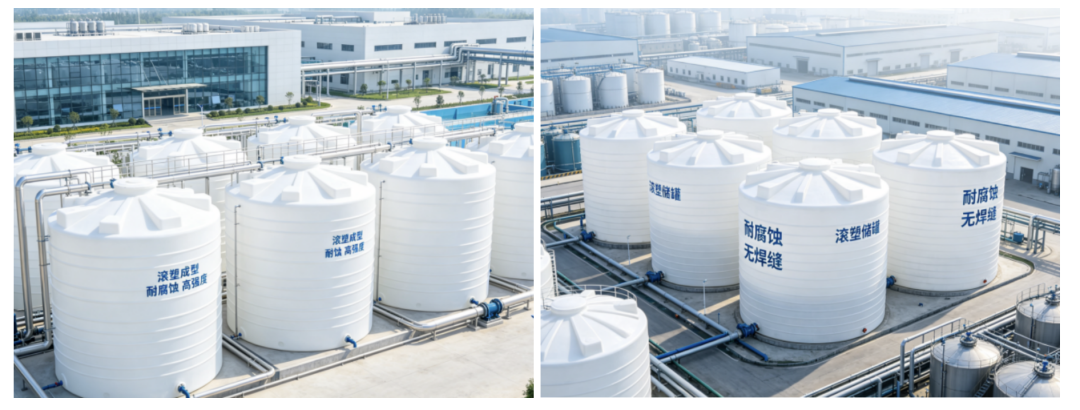

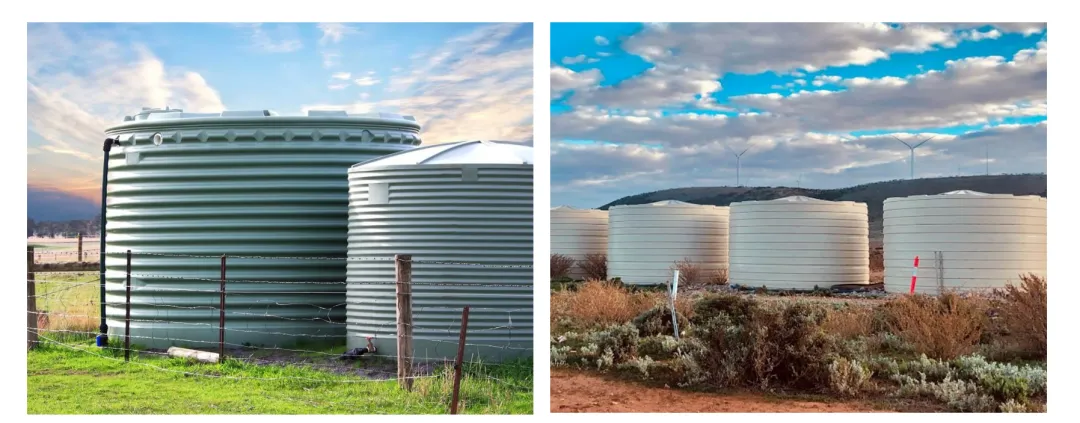

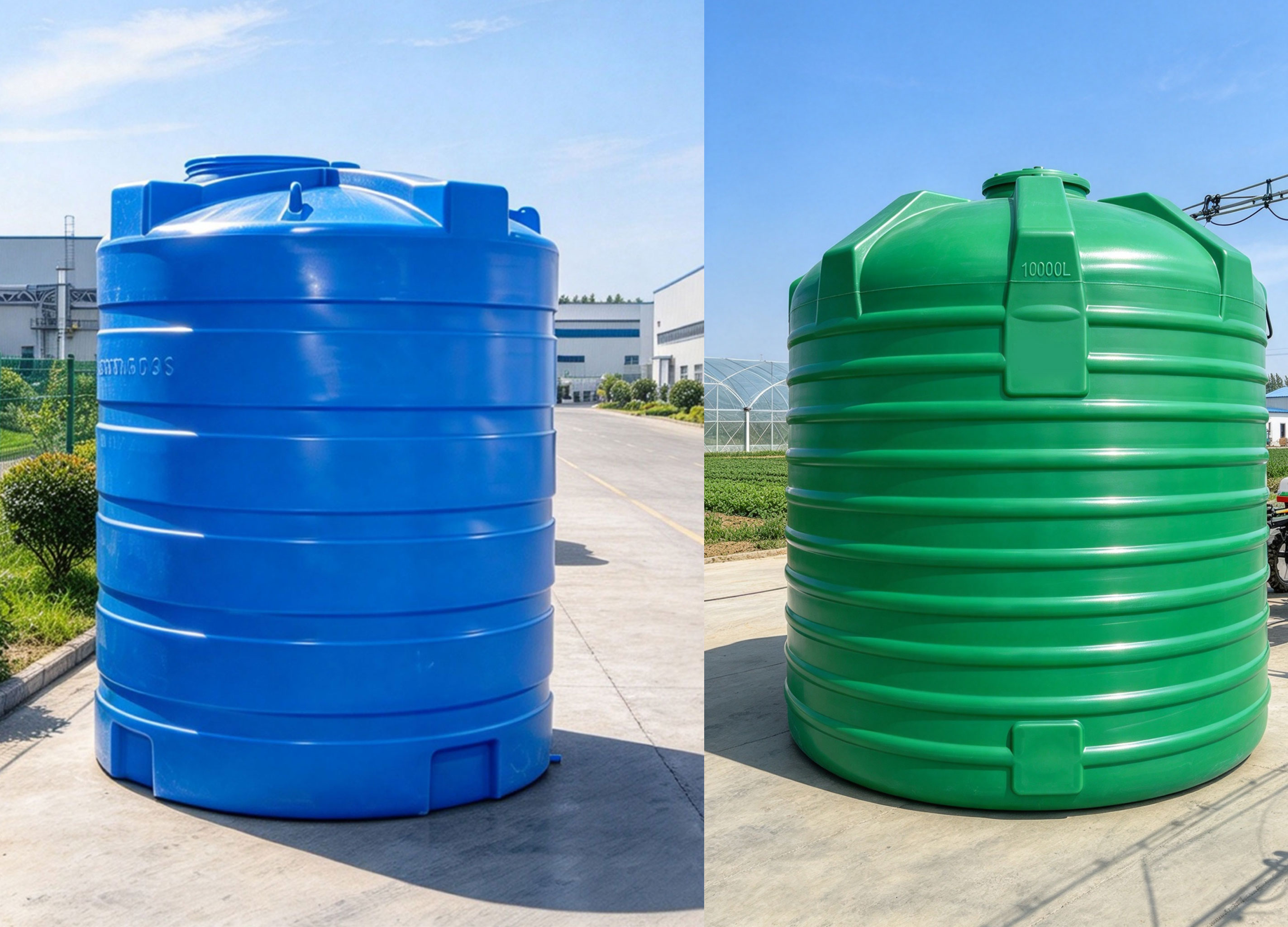

1. Atmospheric Liquid Storage Tanks (500L–50,000L)

As the primary chemical storage solution, these tanks are compatible with a wide range of media, including 30%–37% concentrated hydrochloric acid, 30%–50% caustic soda solution (below 60°C), dilute sulfuric acid up to 50%, acid-alkali mixed wastewater, and saline wastewater. Tank walls can be designed with 8–20mm reinforced thickness, and manholes, flanges, and nozzles are integrally molded — completely eliminating the risk of weld leakage. UV-stabilized additives can be incorporated for outdoor products to ensure long-term weather resistance and anti-aging performance. Specialty material customization is available for highly corrosive service conditions.

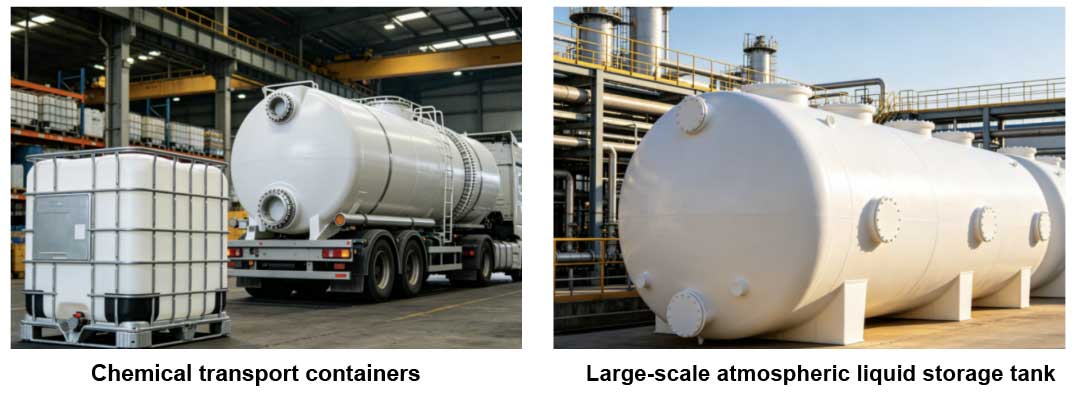

2. Chemical Transport Containers

To address the challenges of sloshing-induced leakage, static electricity hazards, and other risks in hazardous chemical transport, rotomolding can produce 1,000L standard IBC intermediate bulk containers, smaller transfer drums, and 5,000–20,000L vehicle-mounted chemical tanks. Features such as 30%–50% bottom-wall thickening for impact resistance, multi-layer anti-static composite structures, and precision-sealed threaded designs ensure compliance with hazardous material explosion-proof and anti-leakage transport standards.

3. Specialty Chemical Process Equipment

Beyond standard storage tanks, rotomolding is also widely used in high-end fine chemical applications: pickling tanks, electroplating tanks, hydrometallurgical electrolysis cells, integrated mixing tanks, and more.

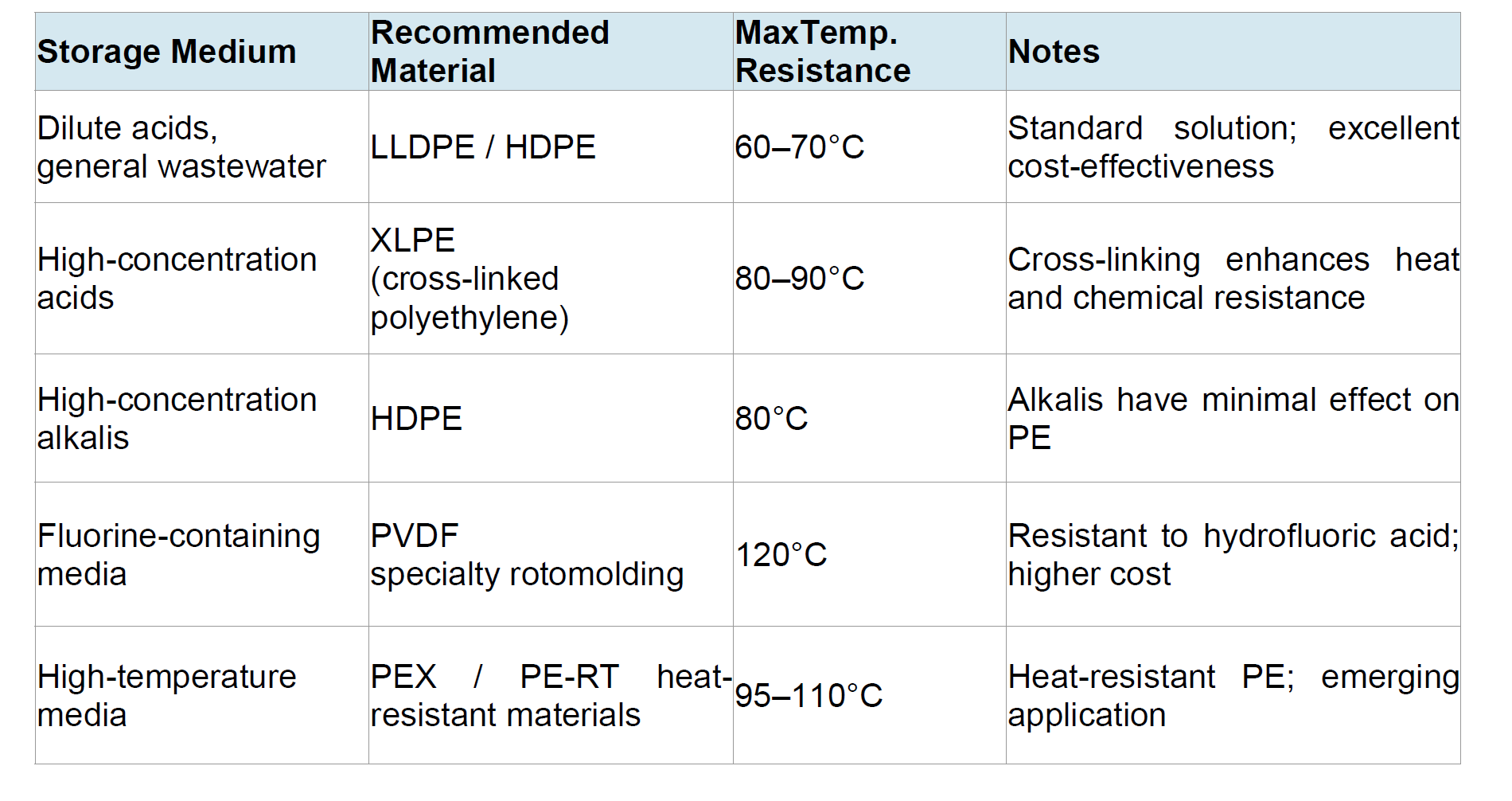

4. Rotomolding Material Selection Guide

Part 3: Environmental Water Treatment — Policy-Driven Growth

With the rollout of the “15th Five-Year Plan” environmental regulations — mandating zero industrial wastewater discharge, rural sewage treatment expansion, and upgrades to aging equipment — demand for compact, underground, and high-integrity water treatment systems is surging. Rotomolding has emerged as the optimal manufacturing solution.

1. Integrated Wastewater Treatment Tanks

With single-tank capacities of 5–30 m³, these units integrate equalization, reaction, sedimentation, and filtration — all in a single seamless shell. Advantages include zero leakage, lightweight construction (only 1/7 the weight of steel equivalents), and resistance to soil and microbial corrosion. They are suitable for underground installation and compatible with mainstream treatment processes including A²O, MBR, and SBR.

2. Chemical Dosing and Disinfection Systems

This product line covers PAM/PAC dosing tanks, sodium hypochlorite disinfection tanks, and integrated coagulation-sedimentation units. They withstand the highly corrosive and strongly oxidizing conditions of water treatment chemicals, with stable sealing performance suitable for both municipal and industrial wastewater applications.

3. Rainwater Harvesting and Reclaimed Water Reuse Systems

These systems include 1–5 m³ modular rainwater collection units, first-flush diversion devices, and reclaimed water storage tanks, providing an all-in-one solution for rainwater collection, diversion, storage, and reuse. They are well suited for sponge city projects, industrial water conservation, and landscape irrigation.

4. Zero-Discharge Components for Chemical Wastewater

Customizable components include emergency containment basins of 50 m³ and above, acid-alkali neutralization tanks, and high-salinity concentrate storage tanks. These are designed to resist crystallization and alternating acid-alkali corrosion, with high impermeability ratings that meet the stringent zero-discharge standards of industrial parks.

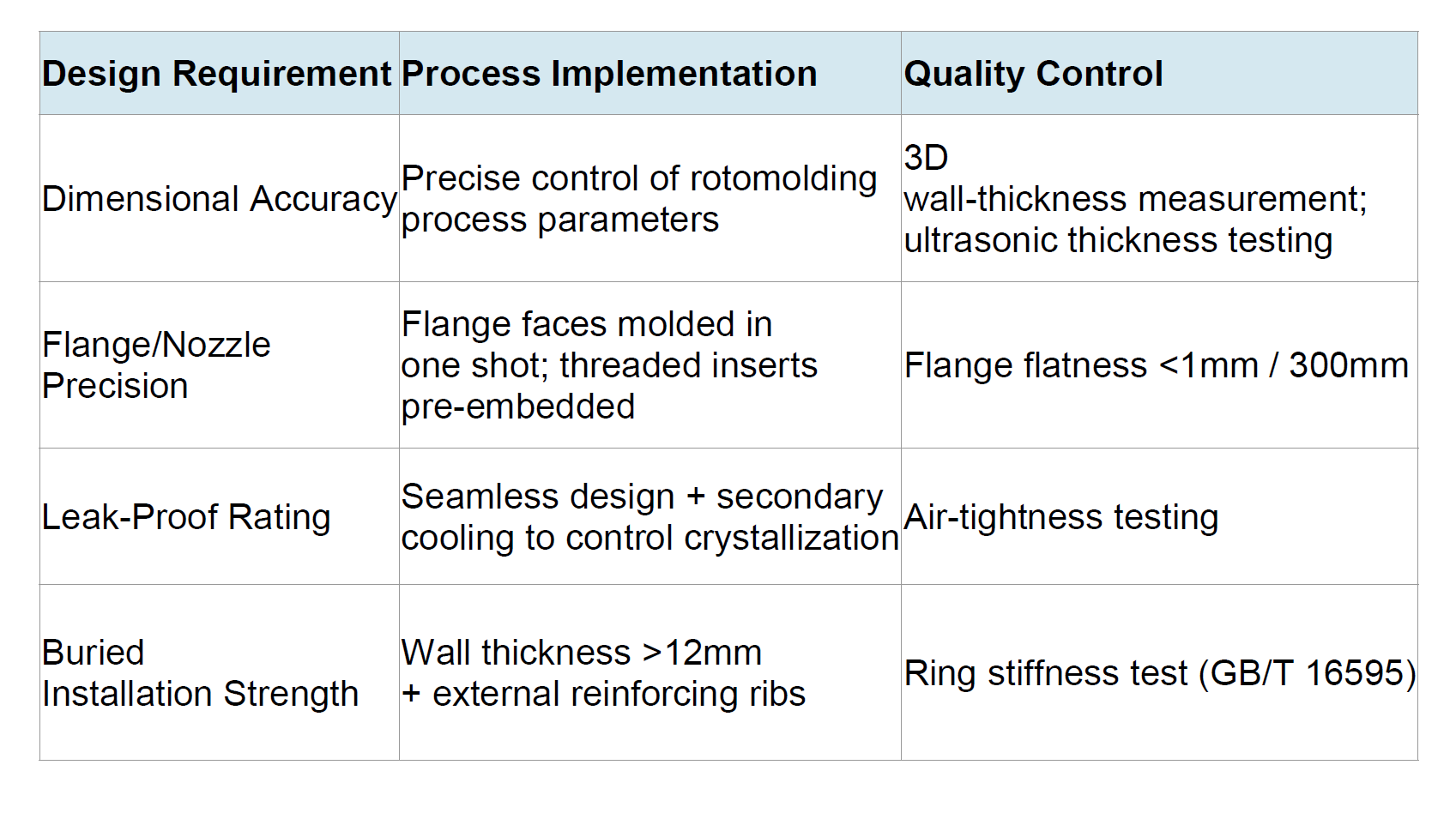

5. Key Design Requirements for Water Treatment Applications

Part 4: Industry Trends and Remaining Challenges

Over the next five years, rotomolding’s specialized segments are expected to sustain rapid growth: chemical storage tanks will continue to replace stainless steel; integrated wastewater tanks will benefit from favorable policies; rainwater collection systems will expand alongside sponge city development; and hazardous chemical transport container standards will keep rising.

At the same time, the industry still faces common challenges: high mold investment costs for large equipment, limited temperature resistance of standard PE materials, inconsistent process standards, and low levels of automation — all of which result in poor product precision, high rejection rates, instability in large-scale equipment, and the inability to serve specialty applications.

Part 5: Conclusion — Rotomolding: The Most Cost-Effective Solution for Chemical and Environmental Applications

From basic storage containers to integrated sewage treatment systems and specialty chemical reaction vessels, rotomolding has long outgrown its stereotype as a low-end plastic process. With core advantages of **seamless zero-leakage construction, superior corrosion resistance, long service life, full customizability, and outstanding cost-effectiveness**, rotomolding is steadily replacing steel and FRP equipment, becoming the preferred solution in chemical storage and environmental water treatment.

With over 20 years of deep expertise in rotomolding, Wenling Rising Sun Rotomolding directly addresses the industry’s pain points by delivering **end-to-end services spanning equipment R&D, mold development, custom production, finished-product delivery, and after-sales technical support**:

On the technology side, leveraging **proprietary equipment R&D capabilities**, the company deploys **automated material feeding, in-mold precision temperature measurement, and intelligent temperature control systems** — eliminating reliance on manual trial-and-error adjustments and ensuring precise control over the entire molding process for uniform wall thickness, accurate dimensions, and consistent quality.

On the mold side, the company **designs and manufactures its own modular assembly molds**, effectively reducing tooling costs for large products and shortening custom delivery lead times.

On the application side, the company provides **comprehensive technical support including material selection, structural optimization, process commissioning, and standardized quality control** on demand — addressing common issues such as leakage, deformation, and aging at the source, thereby reducing customers’ O&M costs and improving project reliability.

Committed to rotomolding craftsmanship and continuous technology and equipment innovation, we welcome industry colleagues to exchange ideas. For samples, custom orders, or on-site facility visits, please feel free to reach out!
